Watchguard XTM 515 – XTM 525 XTM 535 XTM 545 UTM Firewall Ürünleri

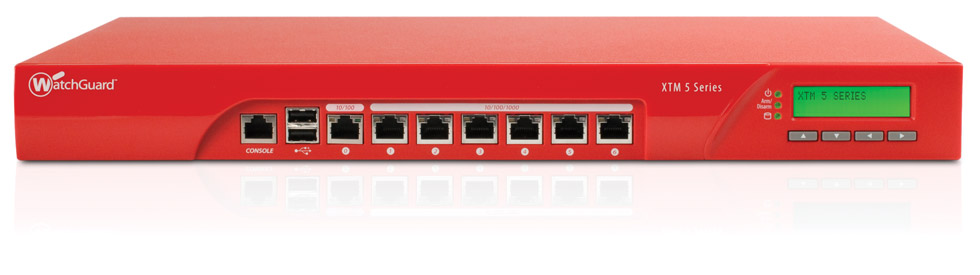

Watchguard XTM 5 Serisi
-
Watchguard XTM 5 Serisi
Fast and affordable, XTM 5 Series appliances combine firewall/VPN with powerful security services and a suite of flexible management tools. Positioned in the middle of the XTM family of unified threat management solutions, 5 Series appliances deliver strong security, up to 3.5 Gbps firewall throughput, and seven Ethernet interfaces – six GigE and one FE – to support high-speed LAN backbone infrastructures and gigabit WAN connections. IT administrators can manage security from a centralized console, scriptable CLI, and web UI. Real-time monitoring and rich reporting are included at no extra cost. Easily scales to accommodate growth.
Error: The video (http://www.youtube.com/watch?v=M8voanMXKX4) couldn't be embedded.Watchguard XTM vs. SonicWall: Securing a web server
Watchguard XTM vs. Fortinet: Network Visibility Tools
Watchguard XTM vs. Cisco ASA: Setting up a VPN tunnel
Fireware XTM PRO included
The Pro version of our Fireware XTM OS is included with purchase for advanced networking features like policy-based routing, dynamic routing, multi-WAN load balancing, and VLAN support.
Fast 3.5 Gbps throughput
The XTM 5 Series puts other appliances in its class to shame with up to 3.5 Gbps for firewall throughput and 750 Mbps UTM throughput, even with security services and deep packet inspection enabled. The 5 Series delivers formidable performance for exceptional value.
Maximum network uptime
High availability capabilities – active/active and active/passive – ensure your network is always up and running.
Faster, safe web surfing
Add a simple subscription to Reputation Enabled Defense to your XTM solution and your organization will have faster web performance and even stronger security – with no additional hardware to buy.
Compliance Reporting
Built-in reports for PCI and HIPAA mean one-click access to the data you need to ensure compliance requirements are covered.
Remote/External Log Server/Report Server DB
MSSPs and larger organizations can now take advantage of the ability to isolate logging and reporting on a separate PC for high performance, scalability, and redundancy.
Green security
Our firewalls are designed with efficiency in mind, consuming very little energy. Compare our power consumption to other security products and see how WatchGuard can make your data center more energy efficient. Green up your network with WatchGuard.
3 ways to manage your appliance
Now you have the power to choose how you manage your WatchGuard appliance including, WatchGuard System Manager, the command line interface, and a web UI for access from anywhere, anytime.
VPN setup in seconds
Nothing could be easier than our drag-and-drop Branch Office VPN setup – three clicks and your remote office is connected.
An investment in your security
Model upgradability ensures your network security investment is protected with the ability to easily upgrade its performance, capacity, and security capabilities as business requirements change and new threats emerge.
Reporting made easy
Monitoring and reporting tools, included at no extra cost, support compliance, with drill-down functions that make it easy to pinpoint specific activities.
Application Control
Control the use of Web 2.0 and other applications on your network for tighter security, better use of bandwidth, and greater productivity.
Veri Kaybı Önleme (DLP)
XTM DLP prevents data breaches by scanning text and common file types to detect sensitive information. A predefined library of over 200 rules for 18 countries makes creating and updating corporate data policies as easy as point and click.
Application Control
Application Control enables IT administrators to monitor and control access to web and business applications to enforce policy, and protect productivity and network bandwidth.
Reputation Enabled Defense
Reputation Enabled Defense delivers a powerful, cloud-based URL reputation service that protects web users from malicious web pages, while dramatically improving web processing overhead.
Web Blocker
WebBlocker content and URL filtering subscription helps eliminate legal liabilities resulting from inappropriate web surfing, while increasing employee productivity and protection from web-based attacks.
spamBlocker
spamBlocker is the best in the industry at distinguishing legitimate communication from spam outbreaks in real time, blocking nearly 100% of unwanted emails and the viral payloads they carry.
Gateway AntiVirus
Gateway AntiVirus is a fully integrated, signature-based security subscription that identifies and blocks known spyware, viruses, trojans, and blended threats in real time.
Intrusion Prevention Service
Intrusion Prevention Service works hand-in-hand with your WatchGuard firewall’s application layer content inspection to provide real-time protection from threats, including SQL injections, cross-site scripting, and buffer overflows.
LiveSecurity Service
Your WatchGuard virtual appliance includes a subscription to our ground-breaking LiveSecurity Service, which you activate online when you register your product. You have four options for getting LiveSecurity when you purchase WatchGuard XTMv. Choose the option that best fits
-
Watchguard XTM 515
İdeal Kullanıcı Sayısı:150Model Yükseltme:XTM 525′e YükseltilebilirFirewall Değeri (Throughput)**:2 GbpsVpn Değeri (Throughput)**:250 MbpsUTM (Throughput)**:850 MbpsIPS Değeri (Throughput)**:1.6 GbpsAV Değeri (Throughput)**:1.5 Gbps10/100 Arayüzü:110/100/1000 Arayüzü:6Giriş/Çıkış Arayüzü:1 Serial / 2 USBDesteklenen Ağ:SınırsızEşzamanlı Bağlantı:40.000VLAN Desteği:100Kullanıcı Veritabanı Limiti*:500VPN Tünel:Şube VPN Tüneli (Max.):65Mobil VPN IPSec Client Lisans:75Mobil VPN SSL & L2TP:65VPN Authentication:Ağ Özellikleri:Dynamic Nat:Static NAT:One to One NAT:VLAN:100Policy-Based Routing:WAN Failover:Multi-Wan Load Balancing:Server Load Balancing:Traffic Management / QoS:High Availability Active / Active Active / Passive:Dynamic Routing:VoIP (SIP ve H.323) Desteği:İdeal Kullanıcı SayısıModel YükseltmeFirewall Değeri (Throughput)**Vpn Değeri (Throughput)**UTM (Throughput)**IPS Değeri (Throughput)**AV Değeri (Throughput)**10/100 Arayüzü10/100/1000 ArayüzüGiriş/Çıkış ArayüzüDesteklenen AğEşzamanlı BağlantıVLAN DesteğiKullanıcı Veritabanı Limiti*VPN TünelŞube VPN Tüneli (Max.)Mobil VPN IPSec Client LisansMobil VPN SSL & L2TPVPN AuthenticationAğ ÖzellikleriDynamic NatStatic NATOne to One NATVLANPolicy-Based RoutingWAN FailoverMulti-Wan Load BalancingServer Load BalancingTraffic Management / QoSHigh Availability Active / Active Active / PassiveDynamic RoutingVoIP (SIP ve H.323) DesteğiWatchguard XTM 525
İdeal Kullanıcı Sayısı:250Model Yükseltme:Firewall Değeri (Throughput)**:2.5 GbpsVpn Değeri (Throughput)**:350 MbpsUTM (Throughput)**:1 GbpsIPS Değeri (Throughput)**:2 GbpsAV Değeri (Throughput)**:1.7 Gbps10/100 Arayüzü:110/100/1000 Arayüzü:6Giriş/Çıkış Arayüzü:1 Serial / 2 USBDesteklenen Ağ:SınırsızEşzamanlı Bağlantı:50.000VLAN Desteği:200Kullanıcı Veritabanı Limiti*:500VPN Tünel:Şube VPN Tüneli (Max.):75Mobil VPN IPSec Client Lisans:100Mobil VPN SSL & L2TP:75VPN Authentication:Ağ Özellikleri:Dynamic Nat:Static NAT:One to One NAT:VLAN:200Policy-Based Routing:WAN Failover:Multi-Wan Load Balancing:Server Load Balancing:Traffic Management / QoS:High Availability Active / Active Active / Passive:Dynamic Routing:VoIP (SIP ve H.323) Desteği:Watchguard XTM 535
İdeal Kullanıcı Sayısı:350Model Yükseltme:XTM 545′e YükseltilebilirFirewall Değeri (Throughput)**:3 GbpsVpn Değeri (Throughput)**:550 MbpsUTM (Throughput)**:1.4 GbpsIPS Değeri (Throughput)**:2.4 GbpsAV Değeri (Throughput)**:1.8 Gbps10/100 Arayüzü:110/100/1000 Arayüzü:6Giriş/Çıkış Arayüzü:1 Serial / 2 USBDesteklenen Ağ:SınırsızEşzamanlı Bağlantı:100.000VLAN Desteği:300Kullanıcı Veritabanı Limiti*:1000VPN Tünel:Şube VPN Tüneli (Max.):200Mobil VPN IPSec Client Lisans:300Mobil VPN SSL & L2TP:300VPN Authentication:Ağ Özellikleri:Dynamic Nat:Static NAT:One to One NAT:VLAN:300Policy-Based Routing:WAN Failover:Multi-Wan Load Balancing:Server Load Balancing:Traffic Management / QoS:High Availability Active / Active Active / Passive:Dynamic Routing:VoIP (SIP ve H.323) Desteği:Watchguard XTM 545
İdeal Kullanıcı Sayısı:450Model Yükseltme:Firewall Değeri (Throughput)**:3.5 GbpsVpn Değeri (Throughput)**:750 MbpsUTM (Throughput)**:1.7 GbpsIPS Değeri (Throughput)**:2.8 GbpsAV Değeri (Throughput)**:2 Gbps10/100 Arayüzü:110/100/1000 Arayüzü:6Giriş/Çıkış Arayüzü:1 Serial / 2 USBDesteklenen Ağ:SınırsızEşzamanlı Bağlantı:350.000VLAN Desteği:400Kullanıcı Veritabanı Limiti*:2500VPN Tünel:Şube VPN Tüneli (Max.):600Mobil VPN IPSec Client Lisans:1000Mobil VPN SSL & L2TP:600VPN Authentication:Ağ Özellikleri:Dynamic Nat:Static NAT:One to One NAT:VLAN:400Policy-Based Routing:WAN Failover:Multi-Wan Load Balancing:Server Load Balancing:Traffic Management / QoS:High Availability Active / Active Active / Passive:Dynamic Routing:VoIP (SIP ve H.323) Desteği:
Güvenlik Özellikleri
Ayrıntılı paket güvenliği, derin uygulama denetimi,uygulama proxy’leri:HTTP,HTTPS,SMTP,FTP,DNS,TCP,POP3
Spyware koruma, DoS atakları, parçalı paketler, bozuk paketler, karmaşık tehditler ve daha fazlası
Anlık mesajlaşma (instant messaging / IM) ve eşten eşe (peer to peer / P2P) vb. uygulamalarda etkin yönetim
Protokol anormallik tespiti, davranış analizi,desen eşleştirme
VoIP: H.323 ve SIP, arama kurma ve oturum güvenliği
Statik ve dinamik kaynak bloklama
Zaman tabanlı kurallamaGüvenlik Abonelikleri
Web Blocker ile HTTP, HTTPS içerik filtreleme
Spam Blocker ile virüs salgını bulma ve tam kullanımlı spam karantina
Gateway Antivirüs ile antispyware ve virüs karantina
Instrusion Prevention Service (IPS)ile protokol ve uygulama bazlı ataklara karşı koruma
Application Blocker ile 1500′den fazla uygulamayı kontrol edebilme
Etkin İtibar Savunma(Reputation Enabled Defense) servisi ile daha güvenilir ve daha hızlı internet sayfaları
1 yıl, 2 yıl, 3 yıl yenileme seçenekleriYönetim Yazılımı
Tüm Watchguard XTM ürünlerinde;
Komut satırı arayüzü ile direkt bağlantı,
Web arayüzü ile yönetim araçlarına istenilen yerden erişim.
Watchguard System Manager (WSM): Bir veya birden fazlacihazın merkezi olaraktüm kaynaklarının yönetilebilmesini sağlar, anlık gerçek zamanlı izleme yapılmasına olanak verir, loglama yapar, network durumunu gösterir, sürükle/bırak VPN ve zengin bir raporlama sunar.Kullanıcı Yetkilendirme
Transparent Actice Directory Authentication (single sign-on)
Radius için XAUTH, LDAP, Secure LDAP, Windows Active Directory
RSA SecurID ve VASCO
Web-tabanlı, lokal
Microsoft terminal servisleri ve CitrixLoglama ve Raporlama
Çok cihazlı loglama
HTML ve PDF rapolar
SQL logveritabanı
Şifrelenmiş log kanalı
SNMP v2/v3
Syslog
Sunucu durum kontrollü loglama ve raporlama
Web-tabanlı, konfigüre edilebilir raporlar -
Güvenlik Firewall Stateful packet inspection, deep packet inspection, proxy firewall Application Proxies HTTP, HTTPS, SMTP, FTP, DNS, TCP, POP3 Threat Protection Blocks spyware, DoS attacks, fragmented packets, malformed packets, blended threats and more VoIP H.323, SIP, call setup & session security Security subscriptions Application Control, Reputation Enabled Defense, WebBlocker, spamBlocker, Gateway AntiVirus, Intrusion Prevention Service (available in the Security Bundle) VPN & Authentication Şifreleme DES, 3DES, AES 128-, 192-, 256-bit IPSec SHA-1, MD5, IKE pre-shared Key, 3rd party cert import SSL Thin client L2TP Works with native OS clients PPTP Server & Passthrough VPN Failover Yes Single Sign-On Transparent Active Directory Auth. XAUTH RADIUS, LDAP, Windows Active Directory Other User Authentication VASCO, RSA SecurID, web-based, local Ağ Operating System Fireware XTM Pro** IP Address Assignment Static, DynDNS, PPPoE, DHCP (server, client, relay) Routing Static, policy-based Link Aggregation 802.3ad dynamic, static, active/backup QoS 8 priority queues, diffserv, modified strict queuing NAT Static, dynamic, 1:1, IPSec NAT traversal, policy-based Other Networking Port independence, High Availability, multi-WAN failover, multi-WAN load balancing, transparent/drop-in mode Yönetim Management Platform WatchGuard System Manager (WSM) v.11 or higher, 4-device WatchGuard System Manager license included with purchase Alarms and Notifications SNMP v2/v3, Email, Management System Alert Server Support Logging, Reporting, Quarantine, WebBlocker, Management Web UI Supports Windows, Mac, Linux OS CLI Includes direct connect and scripting Donanım Ürün Boyutları 28.6 x 43.2 x 4.4 cm Nakliye Boyutlar 53.3 x 45.7 x 13.3 cm Nakliye Ağırlığı 7.3 Kg AC Power 100-240 VAC autosensing Rack Montajı Evet (1U rack montajı) Sertifikalar Güvenlik Sertifikaları ICSA Firewall, ICSA VPN, CC EAL4+ FIPS 140-2 Ağ IPv6 Ready Gold (routing) Safety Sertifikaları NRTL/C, CB Hazardous Substance Compliance WEEE, RoHS, REACH
