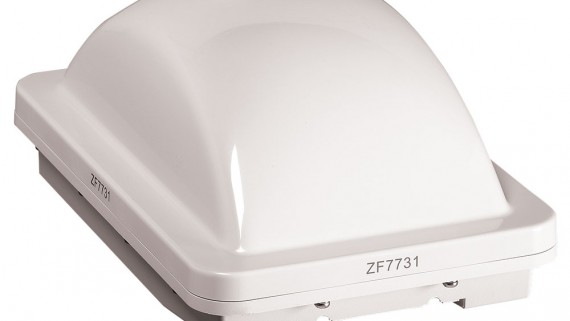

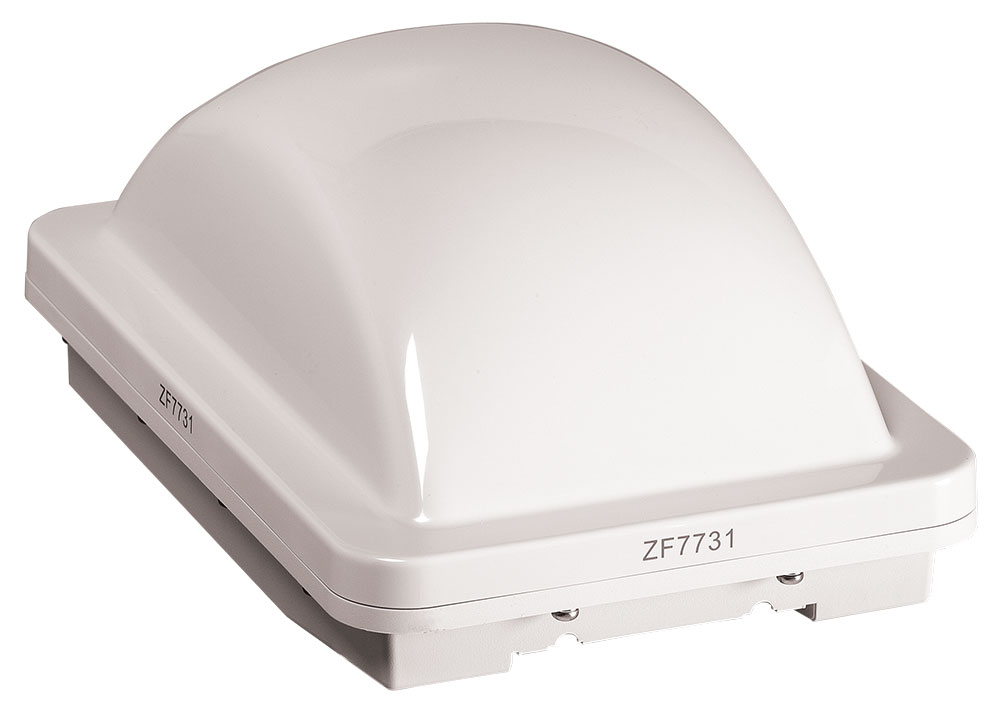

ZoneFlex 7731 Outdoor Access Point
-
Ruckus Wireless ZoneFlex 7731 Outdoor Wireless Bridge
ZoneFlex 7731 Smart 802.11n 5GHz Outdoor Point-to-Point, Point-to-Multipoint Wireless Bridge
Centrally Managed, High Performance 802.11n 5GHz Outdoor Wireless Bridge
The Ruckus ZoneFlex 7731 is the first centrally-managed, outdoor point-to-point and point-to-multipoint bridge that unleashes the promise of 5GHz 802.11n, delivering unparalleled throughput.
The Ruckus ZoneFlex 7731 is the first centrally-managed, outdoor point-to-point and point-to-multipoint bridge that unleashes the promise of 5GHz 802.11n, delivering unparalleled throughput. Backhaul throughput of over 100 Mbps opens opportunities to new business models, bridging remote locations and providing broadband services to locations not reachable before, in an affordable way.
Designed for harsh outdoor conditions, the Ruckus ZoneFlex 7731 is perfect for service providers looking to easily extend branded broadband services, backhaul 3G networks, offload data traffic from 3G networks, deploy multimedia hotspots, or offer wireless broadband services where fixed line access is limited.
The ZoneFlex 7731 is also ideal for hotels, schools, warehouses and other enterprises looking to extend managed wireless LANs (WLANs) across remote buildings and where Ethernet cabling is not possible.
Auto-pairing of wireless bridges, in addition to flexible mounting options, forgiving antenna pattern, and an easy-to-use aiming software, allows installers to deploy and optimize a wireless link in a short time, significantly increasing productivity and reducing deployment costs.
The ZoneFlex 7731 can be managed through its own WebGUI or is centrally managed by Ruckus FlexMaster, providing a complete view of the entire wireless network including ZoneDirector and other indoor and outdoor ZoneFlex APs.
Avantajları
Wire-like throughput over the airBased on the 802.11n standard, the ZoneFlex 7731 supports data rates up to 300 Mbps. With Ruckus’ purpose-built directional antenna, the ZoneFlex 7731 supports up to 190 Mbps at 1.5 kilometers, and offers performance up to 50 Mbps at 10 km (LoS).
Easy installation and pairingLightweight and designed with simple and flexible mounting options, the ZoneFlex 7731 enables installers to deploy the wireless bridges effortlessly.
Simple positioning and aimingWith a 30-degree, 3dB beamwidth antenna and sophisticated LED-based aiming software, aiming and optimizing performance has never been easier. And with Auto Channel Selection and Dynamic Channel Management, ZoneFlex 7731 finds and selects the best performing channel automatically.
Secure and scalableAES-based, the wireless bridge link is secure and can scale to support multiple networks segmented by VLANs.
Centrally managed networkThe Ruckus ZoneFlex 7731 bridge can be fully managed by FlexMaster and supports standard-based SNMP and HTTPS/XML/SOAP allowing operators to easily configure and manage the bridges as part of the larger network.
Unmatched ROIThe wireless link offers much higher data throughput rates than T1/E1 or xDSL lines at only a fraction of the fixed line installation cost and without the recurring leased line cost. The ZoneFlex 7731 is also an ideal option for backhauling 3G networks.
Environmentally-friendly designThe internal dual polarized antenna not only does away the need for installing an external antenna, further simplifying the installation procedure, but also offers an aesthetically pleasing look and feel.
-
Başlıca Özellikler
İçerik Hazırlanıyor
İçerik Hazırlanıyor
-
ZoneFlex 7731
Performans ve Desteklenen Kapasite:Hedef UDP Çıkışı1.5 km’ye kadar 190 Mbps
(Görüş Mesafesi):
3 km’ye kadar 165 Mbps
5 km’ye kadar 100 Mbps
10 km’ye kadar 50 MbpsMaksimum Bağlantı Uzaklığı:15 KilometrePoint-To-Multipoint:30 degrees of coverage from the one root bridge with internal antenna to many receiving bridgesWi-Fi Özellikleri:Standartlar:IEEE 802.11a/n
5GHzDesteklenen Veri İletişimi Hızları:802.11n: 6.5 Mbps – 130 Mbps (20MHz) – 6.5 Mbps – 270Mbps (40MHz)
802.11a: 54, 48, 36, 24, 18, 12, 9, 6MbpsModülasyon:OFDMRadyo Zincirleri:2 x 2Mekansal Akışlar:2RF Güç Çıkışı:5 GHz: 22 dBm (maksimum güç ülkeye göre değişir)Kanallama:20MHz ve 40MHzFrekans Bandı:IEEE 802.11n: 5.15 – 5.85 GHz
IEEE 802.11a: 5.15 – 5.875Channels:5GHz channels: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165, 169, 173Kablosuz Ağ Güvenliği:WPA2, AES, 802.11iSertifikalar:ABD, Avrupa, Kanada, Avustralya, Hindistan, Çin, Malezya, Filipinler, Yeni Zelanda
WEEE/RoHS uyumluYönetim:Kurulum Opsiyonları:Tek başına kurulum
FlexMaster™ ile yönetimYapılandırma:Web Kullanıcı arabirimi (HTTP / S)
CLI (Telnet / SSH), SNMP v1, 2, 3
TR-069 vis FlexMasterOtomatik Access Point Yazılım Güncellemesi:FTP veya TFTP, uzaktan otomatik güncellemeTrafik Yönetimi & Quality of Service (Qos):Otomatik Trafik Sınıflandırması:Automatic type of service tagging for multicast video and voice packets
Automatic prioritization of VoIP and video traffic
Support for 802.1pVLAN Desteği:802.1Q passthrough
Management VLANClasses Support:Voice, video, best effort and background802.1p - Based Classification:VarHeuristic classification:VarFiziksel Özellikler:Güç:POE
12VDC Harici AdaptörFiziksel Ölçüler:27.1cm (L) x 17.2cm (W) x 13.15cm (H)Ağırlık:877 GramAnten:17 dBi internal directional antenna
30 degree 3dB beamwidth
Two external N-Type antenna connectorsEthernet Portları:1 x 10/100/1000 Mbps auto MDX, auto-sensing, RJ-45 802.3af POE portÇevresel Şartlar:IP-65 Rated
Çalışma Sıcaklığı:-40°c – 65°cPerformans ve Desteklenen KapasiteHedef UDP Çıkışı
